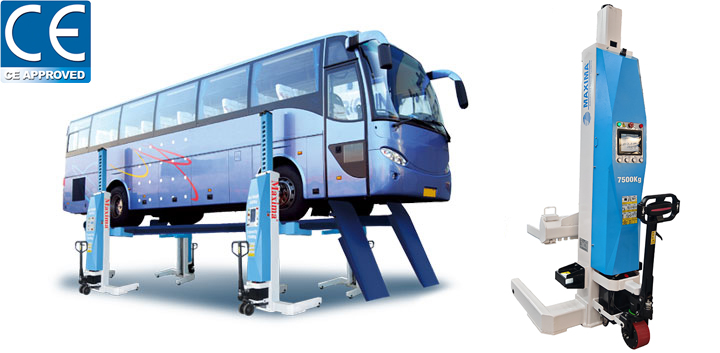

Premium Wireless Model

Specifications ( take 4 columns for example )

Number of columns 4 Capacity per column 7.5 ton
Total capacity 30tons Max. Lifting height 1700 mm
Time of full rise 90 sec Battery capacity 20 ups & downs (Full charge)
Weight 700kgs per column Column dimensions(mm) 2300(H) × 1100(W) × 1300(L)
Output Voltage 24v DC Input Voltage for charger 110V/220V AC


ID Grouping -- all columns are identical; columns with the same capacity can group freely as a set at any time by simple setting-ups, such as 2-, 4-,       6-, 8-, and up to 16-column set.

9'' large color touch screen -- facilitating convenient operation.

Lift management function -- facilitating direct work order management on the lift.

Remote monitor function -- monitoring use frequency as well as lifting time & weight each time, so the lift can give maintenance tips automatically       and the users could carry out maintenance services on the lift timely.

Self-diagnosis function -- color screen showing the corresponding error code and detailed steps guiding users to fix the errors.

Connected to internet via WIFI -- facilitating users to log on the internet and search for needed information directly.
