◆ Save time for plug-in/off;
◆ Operate the lifts anytime & anywhere;
◆ No tripping hazard to operators;
◆ Real-time lifting height;
◆ Continuously monitored battery condition;
◆ Mode type;
◆ Multi languages option;
◆ Troubleshooting for any trouble.
◆ Automatic stop when highest point is reached;
◆ Throttle valve & mechanical lock;
◆ Automatic stop when either column has 50 mm height difference.
◆ The set can rise up& down smoothly even if the load is unevenly loaded;

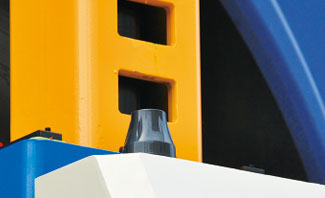

◆ Upgradedantenna for better communication.
Model | FC55W | FC75W | FC85W |
Number of columns | 4,6,8,10,12,14,16 | ||
Lifting capacity per column | 5.5 tons | 7.5 tons | 8.5 tons |
Max. lifting height | 1820mm | ||
Time for lifting/lower | 90s | ||
Lifting system | Hydraulic | ||
Battery capacity | 20 ups & downs (Full charge) | ||
Output Voltage | 24v DC | ||
Input Voltage for charger | 110V/220V AC | ||
Column dimensions | 2300mm(H)*1100mm(W)*1300mm(L) |
Zigbee for Signal Transmission
LCD screen on all columns

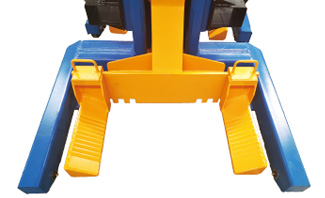

Adjustable wheel supports accommodate wheel sizes from 380mm to 1156mm
