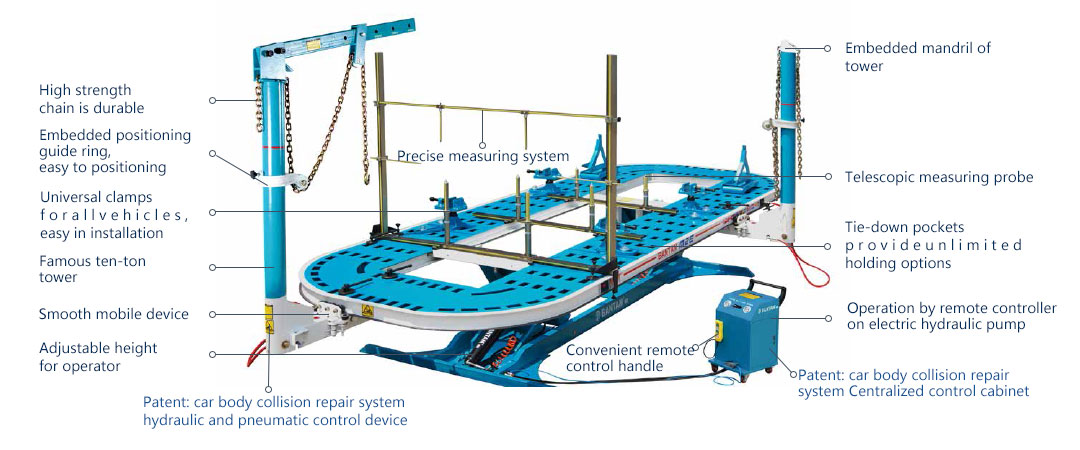

There’s only one electric-hydraulic pump to control the up&down of the platform, RSJ and pulling towers.

The equipment is highlighted by its rigid platform welded by milled steel boards.

The vehicle can drive on and off the patented hydraulic tiltable platform easily.

The pulling towers with patented round collar glide with ease around the entire equipment.

The hydraulic system has large pulling capacity, long lifespan and low malfunction.

The patented Universal Clamp can anchor all kind of chassis rock-solid.

The platform can work well with all kinds of measuring systems.

ISO9001:2008 certified.



Platform length 5500mm 6100mm
Platform width 2236mm 2236mm
Platform height 380-1020mm 380-1020mm
Max. pulling power of the tower 10 T 10 T
Working range 360° 360°
Voltage 380v,3 phase/ 220v, 1 phase/220v, 3 phase 380v,3 phase/ 220v, 1 phase/220v, 3 phase
Electric pump power 1.5kw 1.5kw
Max. air pressure 0.8MPa 0.8MPa
Max. lifting capacity 3500kg 3500kg
Weight 3000kg 3100kg
Product specifications may change without notice.

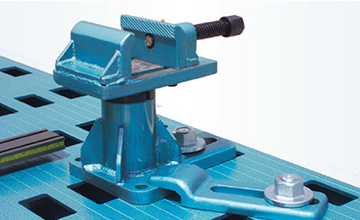

  • Universal clamps can anchor the cars rock solid.

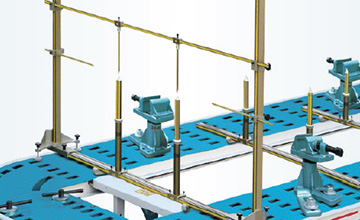

  • Precise measuring system.

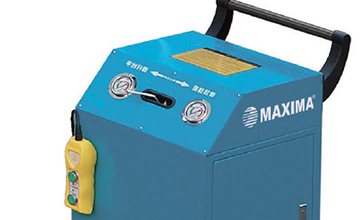

  • Powerful electric hydraulic pump is convenient and stable.

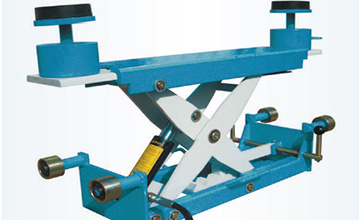

  • Lifting device.
